PA X 1-05

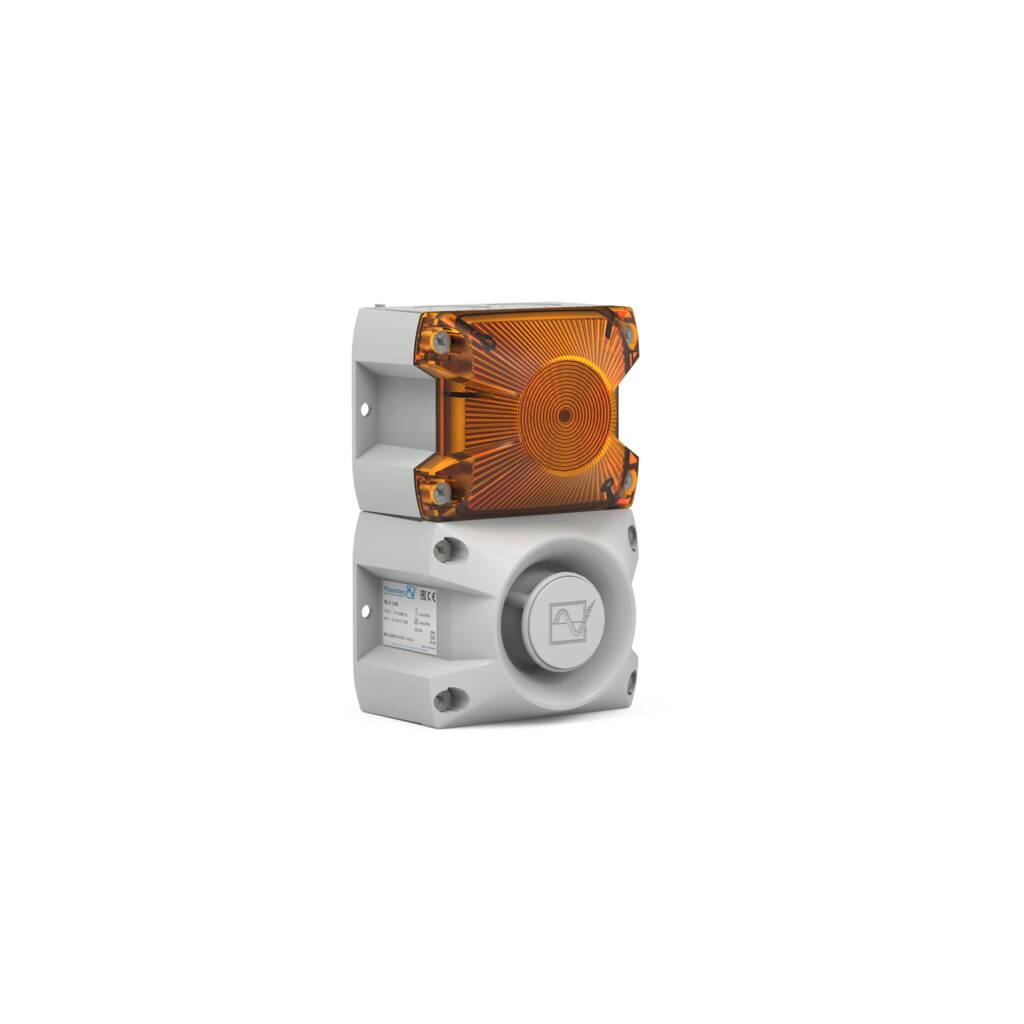

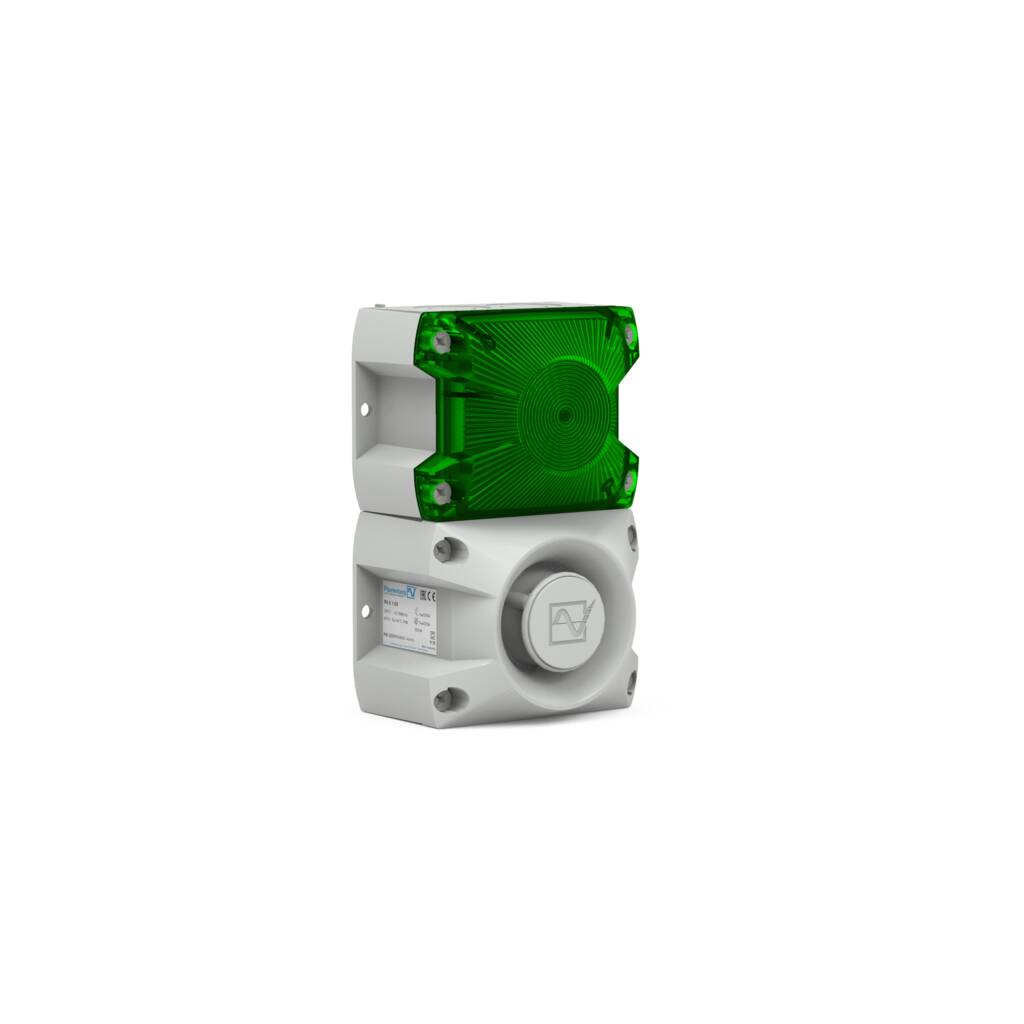

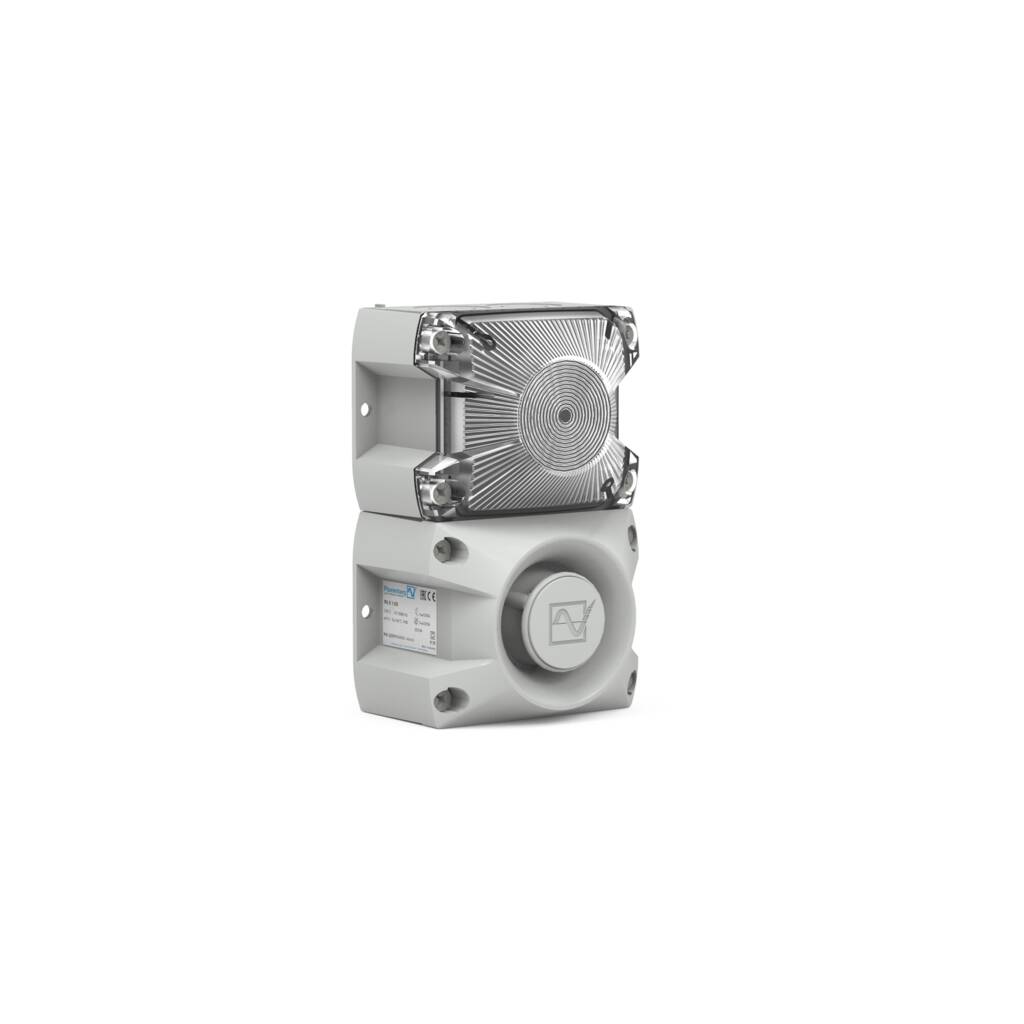

PATROL Flashing Sounders 100 dB(A) / 5 J

PATROL – the new generation of sounder/flashing light combinations. Three dimensional innovation;

  • safe; an incorrect installation is virtually impossible
  • easy; significantly shorter assembly and installation times
  • economical; extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
  • pre-wired sounder and light ex works
  • corresponding light intensity available for every sound pressure level

protection system

impact-proof housing

NEMA 4/4X

operating temperatur

acoustic penetration

external tone selection

SSM 24V DC (option)

warranty

Germanischer Lloyd (option)

MED option

EurAsian Conformity

UL approved

24 V DC

24 V DC

24 V DC

Pfannenberg 3D-Coverage

PA X-1-05 - Size of visual coverage (A x B x C in meter)

Indicate Warning Alert
red
yellow
amber
clear
To display other values click the CLEAR SELECTION field. Now select the desired lens colors or alarm levels.

The figures shown are mainly for a quick orientation. For an individual and precise interpretation please use Pfannenberg Sizing Software (PSS).

Technical data

Electrical dataPA X 1-05
Rated voltage230 V AC115 V AC24 V DC
Rated frequency50/60 Hz50/60 Hz-
Operating range187 – 255 V90 – 135 V18 – 30 V
Nominal current consumption65 – 70 mA110 – 130 mA315 – 365 mA

Further technical details, performance curves and dimensions can be found in the Download Section on this page under Product Sheet.

Downloads

Description Language Type Size Download

Product Sheet

  • English
pdf 4.4 MB Download

Operating manual

  • German
  • English
  • French
  • Russian
  • Italian
pdf 3.2 MB Download

3D-Model (IGS)

  • English
zip 920 KB Download

3D-Model (SAT)

  • English
zip 940 KB Download

3D-Model (STEP)

  • English
zip 700 KB Download

Drawing (DWG)

  • German
  • English
dwg 1.6 MB Download

Support for planning

  • English
pdf 1.3 MB Download

Declaration of performance

  • English
pdf 1.8 MB Download

CNBOP Certificate

  • Polish
pdf 1.5 MB Download

EN 54 Certificate

  • German
  • English
pdf 83 KB Download

MED Certificate

  • English
pdf 90 KB Download

Type Approval Certificate GL

  • English
pdf 41 KB Download

UL Certificate

  • English
pdf 260 KB Download

VdS Approval

  • German
  • English
pdf 3.0 MB Download

Declaration of Conformity

  • German
  • English
pdf 330 KB Download

EAC Certificate

  • Russian
pdf 1.3 MB Download

Ordering details

Ordering detailsPA X 1-05 - housing red
VersionRated voltage230 V AC115 V AC24 V DC
clear lensArticle number233111010002331115100023311801000*
yellow lensArticle number233111030002331115300023311803000
amber lensArticle number233111040002331115400023311804000
red lensArticle number233111050002331115500023311805000*
Ordering detailsPA X 1-05 - housing grey
VersionRated voltage230 V AC115 V AC24 V DC
clear lensArticle number233111010552331115105523311801055*
yellow lensArticle number233111030552331115305523311803055
amber lensArticle number233111040552331115405523311804055
red lensArticle number233111050552331115505523311805055*

* devices with EN 54-23 approval

Article numbers for other types on request

Video

Signaling Technology - PATROL: New Sounder Generation

Audio Samples

Description Language Type Size Download

Sawtooth

DIN tone 33404-3 Germany (emergency signal) PFEER PTAP

wav 800 KB Download

Slow whoop

fire alarm UK BS5839-1

wav 890 KB Download

Interrupted tone

fast

wav 910 KB Download

Interrupted tone

wav 930 KB Download

Slow whoop

Netherlands NEN 2575 (evacuation alarm)

wav 890 KB Download

Slow whoop

Australian AS2220 (evacuation alarm)

wav 1.1 MB Download

Slow whoop

NFPA

wav 980 KB Download

Pulsating tone

Australian alert AS1670, ISO 8201

wav 710 KB Download

Siren

wav 1.4 MB Download

Siren

wav 1.3 MB Download

Siren

wav 1.3 MB Download

Siren

industrial alarm Germany

wav 5.3 MB Download

Sweeping

wav 980 KB Download

Sweeping

fast

wav 1.0 MB Download

Sweeping

wav 900 KB Download

Sweeping

France NFC 48-265

wav 1.1 MB Download

Sweeping

(medium) UK BS 5839-1

wav 980 KB Download

Sweeping

(fast)

wav 940 KB Download

Sweeping

(fast) UK BS 5839-1

wav 1.0 MB Download

Sweeping

wav 1.1 MB Download

Sweeping

wav 800 KB Download

Sweeping

IMO 3d, Germany KTA3901 (evacuation Alarm)

wav 890 KB Download

Sweeping

wav 1.1 MB Download

Sweeping

Finland (general alarm)

wav 3.1 MB Download

Continuous tone

wav 880 KB Download

Continuous tone

wav 880 KB Download

Continuous tone

Finland (all-clear signal)

wav 850 KB Download

Continuous tone

PFEER gasalarm

wav 1.0 MB Download

Continuous tone

wav 1.0 MB Download

Continuous tone

UK BS5839-1

wav 1.0 MB Download

Continuous tone

wav 1000 KB Download

Continuous tone

wav 990 KB Download

Continuous tone

wav 990 KB Download

Continuous tone

wav 980 KB Download

Continuous tone

Sweden SS031711 (all-clear signal)

wav 980 KB Download

Continuous tone

wav 980 KB Download

Continuous tone

Germany KTS3901 (all-clear signal)

wav 890 KB Download

Continuous tone

wav 880 KB Download

Continuous tone

wav 880 KB Download

Continuous tone

wav 950 KB Download

Interrupted tone

wav 890 KB Download

Interrupted tone

PFEER (general alarm) UK BS5839-1 (back-up alarm)

wav 940 KB Download

Interrupted tone

PFEER (general alarm)

wav 860 KB Download

Interrupted tone

wav 880 KB Download

Interrupted tone

wav 870 KB Download

Interrupted tone

wav 930 KB Download

Interrupted tone

wav 890 KB Download

Interrupted tone

(fast), horn

wav 1.1 MB Download

Interrupted tone

wav 880 KB Download

Interrupted tone

Sweden SS031711 (emergency signal)

wav 890 KB Download

Interrupted tone

(industrial alarm) Germany

wav 910 KB Download

Interrupted tone

Sweden SS031711 (important message (pre-mess))

wav 2.3 MB Download

Interrupted tone

Sweden SS031711 (local warning)

wav 1.1 MB Download

Interrupted tone

Sweden SS031711 (air raid warning)

wav 940 KB Download

Interrupted tone

Sweden SS031711 (emergency signal)

wav 900 KB Download

Interrupted tone

Germany KTA3901 (evacuation alarm)

wav 950 KB Download

Interrupted tone

Australia AS2220, AS1610, AS1670

wav 870 KB Download

Interrupted tone

(fast variable) bell

wav 970 KB Download

Interrupted tone

ISO 8201 (emergency evacuation signal), USA (evacuation alarm)

wav 960 KB Download

Interrupted tone

ISO 8201 (emergency evacuation signal)

wav 990 KB Download

Interrupted tone

ISO 8201 (emergency evacuation signal) sweeping

wav 990 KB Download

Interrupted tone

IMO (telephone call)

wav 1.0 MB Download

Interrupted tone

IMO (leave ship)

wav 1.0 MB Download

Interrupted tone

IMO SOLAS III/50 + SOLAS III/6.4 (general alarm)

wav 7.9 MB Download

Alternating tone

wav 890 KB Download

Alternating tone

wav 930 KB Download

Alternating tone

Singapore

wav 890 KB Download

Alternating tone

wav 890 KB Download

Alternating tone

wav 930 KB Download

Alternating tone

UK BS58391-1 (fire alarm)

wav 980 KB Download

Alternating tone

UK BS5839-1 (fire alarm, railway crossing)

wav 1.1 MB Download

Alternating tone

UK BS5839-1 (fire alarm, increased urgency - railway crossing)

wav 930 KB Download

Alternating tone

wav 980 KB Download

Alternating tone

industrial alarm Germany

wav 950 KB Download

Alternating tone

wav 890 KB Download

Alternating tone

France NFS 32-001 (fire alarm)

wav 1.0 MB Download

Alternating tone

Sweden SS031711

wav 890 KB Download

Alternating tone

Sweden SS031711

wav 890 KB Download

Alternating tone

(two tone chime)

wav 890 KB Download

Product Benefits

  1. 1

    Captive fasteners

    Installation and assembly is simplified and screws cannot get lost.

  2. 2

    Flash tube

    Xenon strobe generates highly visible light without sensitive filaments and is inherently resistant to shock and vibration.

  3. 3

    Selectable audible notification

    Choice of 80 unique alarm tones with four stages of tone control for distinctive signalling of specific events.

  4. 4

    Plug and socket connections

    Upper and lower sections combine positively to simplify installation. When separated, electrical hazards are eliminated for handling.

  5. 5

    Shape-moulded gasket

    Stays in-place and cannot get lost.
